EZ PULLER GRAPPLE/GUARD COMBO
Description
COMBINATION HYDRAULIC GRAPPLE AND CAB GUARD
GRAPPLE ONLY** WE can get the grapple combo for you on both the Dominator and Challenger tree pullers!
Patented US9518405B2

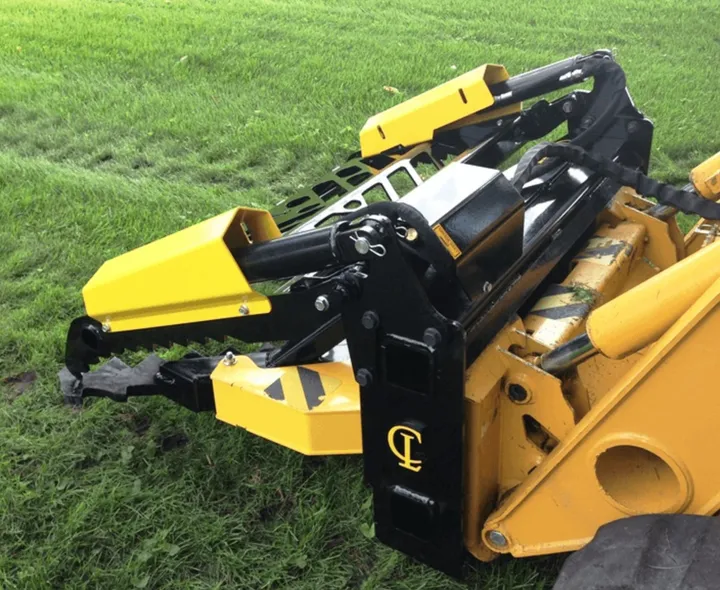

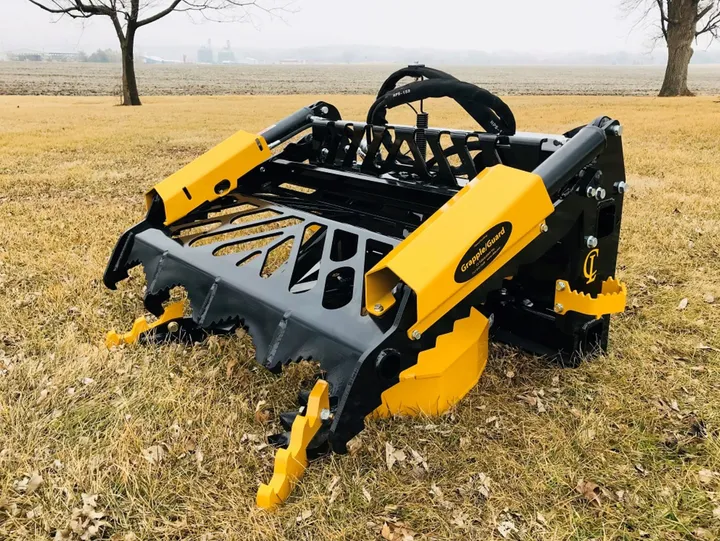

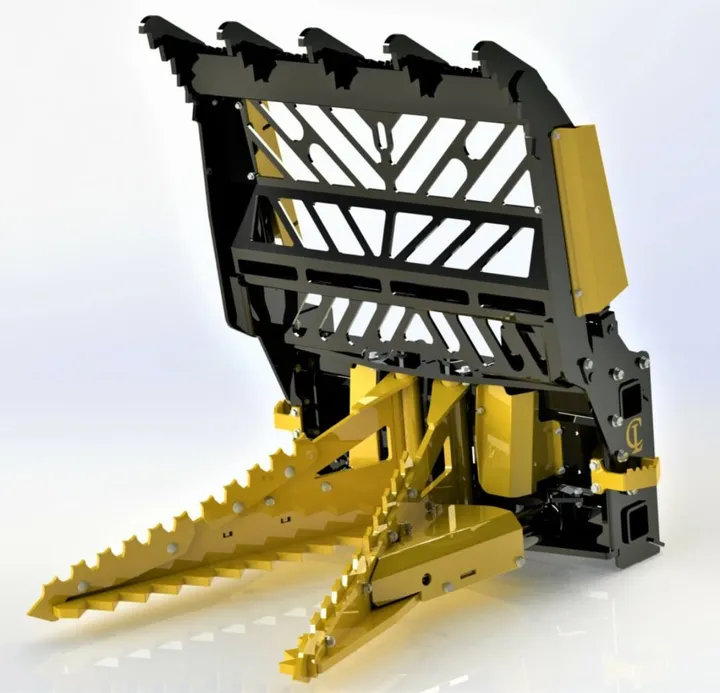

This new tool will save you time and money. The new Tree Puller Grapple Guard is a powerful hydraulic grapple that mounts on any CL FAB EZ-Puller tree puller. The Grapple/Guard acts as a cab protector when in the upright position and then by flipping a switch the operator can change to the grapple function.
One attachment is all you need to remove and handle trees and brush.

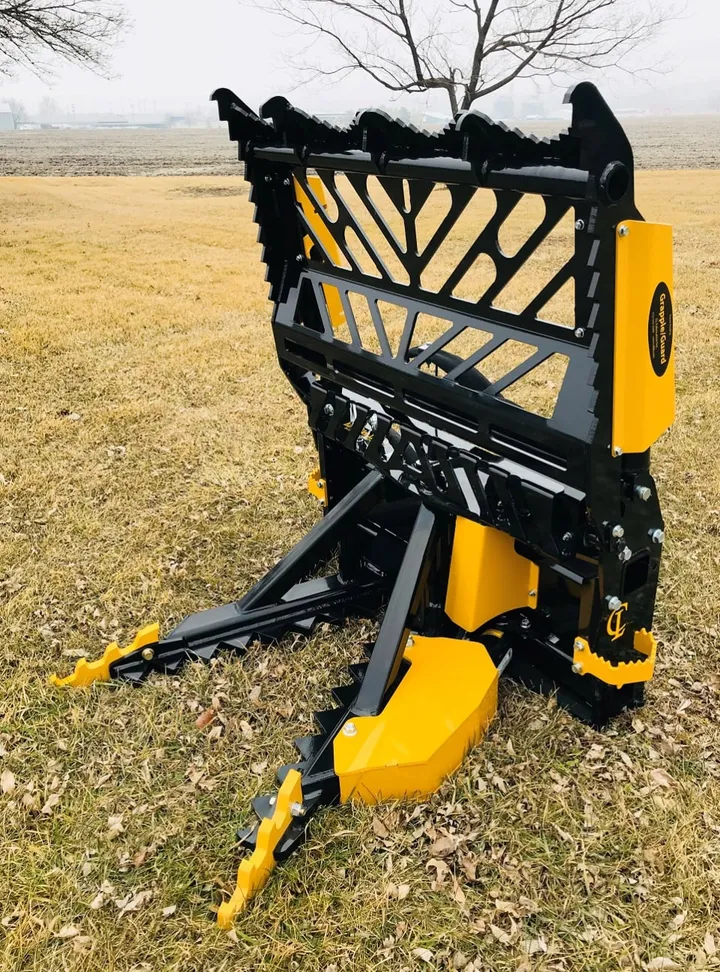

When the grapple is open it’s a very strong cab guard that helps protect the operator and keeps the trees away from your expensive cab door.
Two, 2.5″ bore hydraulic cylinders have more than enough power to clamp and hold large piles of brush and big limbs.
- Mounts on any CL FAB EZ-Puller
- Teeth are 3/4″ thick
- One piece guard panel is 3/8″ thick
- Dual 2.5″x8″ welded cylinders
- Includes 12v solenoid valve, control switch and wire harness kit
- Flat face couplers included
- 1″ diameter, CF1045 pivot pins through thick wall greasable bushings at pivot points
- Abrasive blasted and powdered coated.
- Weights 340#
- Easily retrofit to older CL Fab pullers
- Patented US9518405B2
